Hinges |
|

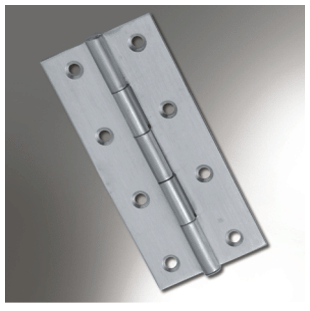

| Riveted Unequal Flap Hinges |
|
 |
 |
| Artical No. |
Size (in Inches)
L X W X T |
Size (in mm)
L X W X T |
Knuckle Diameter (in mm) 0 |
No. Of Screw Holes |
Screw Size |
| HGRU044617 |
4 X (1/2X3/4) X 1/15 |
100 X (13X19) X 1.70 |
100 X (13X19) X 1.70 |
6 |
6 X 19 |
| HGRU044817 |
4 X (1/2x1) X 1/15 |
100 X (13X25) X 1.70 |
100 X (13X25) X 1.70 |
6 |
6 X 19 |
| HGRU046817 |
4 X (3/4X1) X 1/15 |
100 X (19X25) X 1.70 |
100 X (19X25) X 1.70 |
6 |
6 X 19 |
| HGRU034617 |
3 X (1/2X3/4) X 1/15 |
75 X (13X19) X 1.70 |
75 X (13X19) X 1.70 |
6 |
6 X 19 |
| HGRU034817 |
3 X (1/2X1) X 1/15 |
75 X (13X25) X 1.70 |
75 X (13X25) X 1.70 |
6 |
6 X 19 |
| HGRU036817 |
3 X (3/4X1) X 1/15 |
75 X (19X25) X 1.70 |
75 X (19X25) X 1.70 |
6 |
6 X 19 |
| HGRU035317 |
3 X (5/8X3/8) X 1/15 |
75 X (15X10) X 1.70 |
75 X (15X10) X 1.70 |
6 |
6 X 19 |
| HGRU039317 |
3 X (9/8X3/8) X 1/15 |
75 X (27.5X10) X 1.70 |
6.5 |
6 |
6 X 19 |
| HGRU034612 |
3 X (1/2X3/4) X 1/21 |
75 X (12X19) X 1.20 |
5.5 |
6 |
6 X 19 |
|
| |
|
|
| All products are maintain in Super Fine Satin (Matt) Finish, Also avilable Antique, Nickle, Brass, Gold Plated Finish on demand. |
|
